KARTT Ultimate Jockey Wheel with Superwheel

Colour Orange

Part Number 1140726

Dimensions 713(H) x 90(W)mm

Width (mm) 90


Weight 7kg

Part number 1140726

Pay £79.00


Estimated dispatch by Tuesday 13th June | Delivery information

We recommend these extras

Key features

  • The Ultimate Jockey Wheel with Superwheel.
  • Extra wide 65mm low-profile Superwheel - ideal for motor movers.
  • Designed in collaboration with the Caravan and Motorhome Club.
  • Unique ergonomic and safety-focused features.
  • Heavy duty and virtually maintenance-free.

Full product details

Product description

NEW – KARTT Ultimate Jockey Wheel!

The KARTT upgraded 2023 Ultimate Caravan Jockey Wheel makes life even easier for caravanners. Developed with feedback from the Caravan and Motorhome Club, the KARTT Jockey Wheel has taken a huge step forward with the introduction of the Kartt Superwheel!

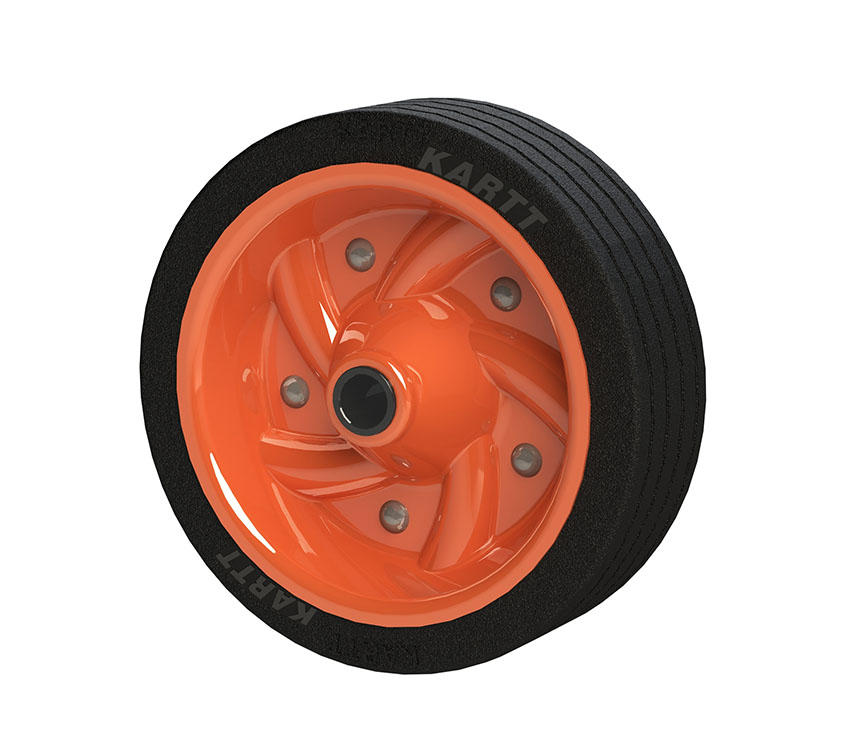

KARTT Superwheel

Using feedback from Caravan and Motorhome Club members, the Superwheel has been designed to deliver ultimate performance at an exceptional price point. The new ‘Superwheel’ has been re-engineered with an enlarged rim, superior rivets and a state-of-the-art lower profile recyclable rubber tyre. Rigorous testing has demonstrated the durable rubber with the enhanced all-terrain wide wheel is ideal for use with motor movers and challenging conditions.

With so many features in a 'simple' jockey wheel, this heavy-duty wheel overcomes many of the problems experienced by the caravan user when choosing a replacement wheel. This ergonomically designed caravanning essential is tough enough to withstand the impact of curbs and ruts, without being too heavy or cumbersome.

Long-lasting premium quality

The entire jockey-wheel construction is built to withstand the rigours of touring and year-round exposure to the elements, with components and materials chosen for their durability. The 20mm steel axle tube runs inside a maintenance-free nylon bearing, resulting in no metal-to-metal wear, and much higher performance than a steel bearing which is prone to breaking under load.

KARTT Turn-Lok anti-vibration device stops the handle unwinding while travelling – something that could cause serious damage to the caravan or other road users.

Use the Jockey Pocket Wheel Protector to prevent damage to the wheel, and add extra stability when parked up,

Ergonomic winding handle

The unique specification includes a thoughtfully designed easy-grip handle:

  • Easy one-handed winding action created by the thrust ball bearings.
  • Ergonomically designed knob for easy grip in wet or dry.
  • A 5mm thick flat steel bar welded handle that does not bend or break.

This new jockey wheel is a vital caravan component. Join thousands of other users who have benefitted from the unique features and research uniquely developed by KARTT.

For twin axle caravans with heavier nose weights, it is recommended to use KARTT Anti-slip Ultimate Jockey Wheel with Super Wheel.

Replacement KARTT Super Wheels are available.

All features

  • Extra wide 65mm Superwheel - ideal for use with motor movers and challenging conditions.
  • Solid rubber tyre will not puncture!
  • Friction-free nylon load-resistant bearing.
  • Extra strong domed rivets.
  • Smooth travel across most surfaces - including tarmac, gravel, chippings, and hard grassy areas.
  • Tough and durable to withstand high impact over curbs and cobbles.
  • Kartt Turn Lok stops the wheel from unwinding when driving.
  • Smooth winding steel roller bearings.
  • Ergonomic handle for easy gripping and winding - even in the wet.
  • Easy to install on most caravans.
  • High-quality metal components.
  • Corrosion-resistant electroplating and 2mm powder-coated baked-on steel rim.

Technical specifications

  • 5mm thick steel wheel hanger.
  • Total dimensions 713(H) x 90(W)mm
  • Superwheel 220(Ø) x 65(W)mm.
  • 20mm steel axle.
  • Tube size 48(Ø)mm.
  • Solid rubber tyre.
  • Max load 250kg.
  • Weight 7kg.


Colour Orange
Part Number 1140726
Dimensions 713(H) x 90(W)mm
Width (mm) 90
Weight 7kg
